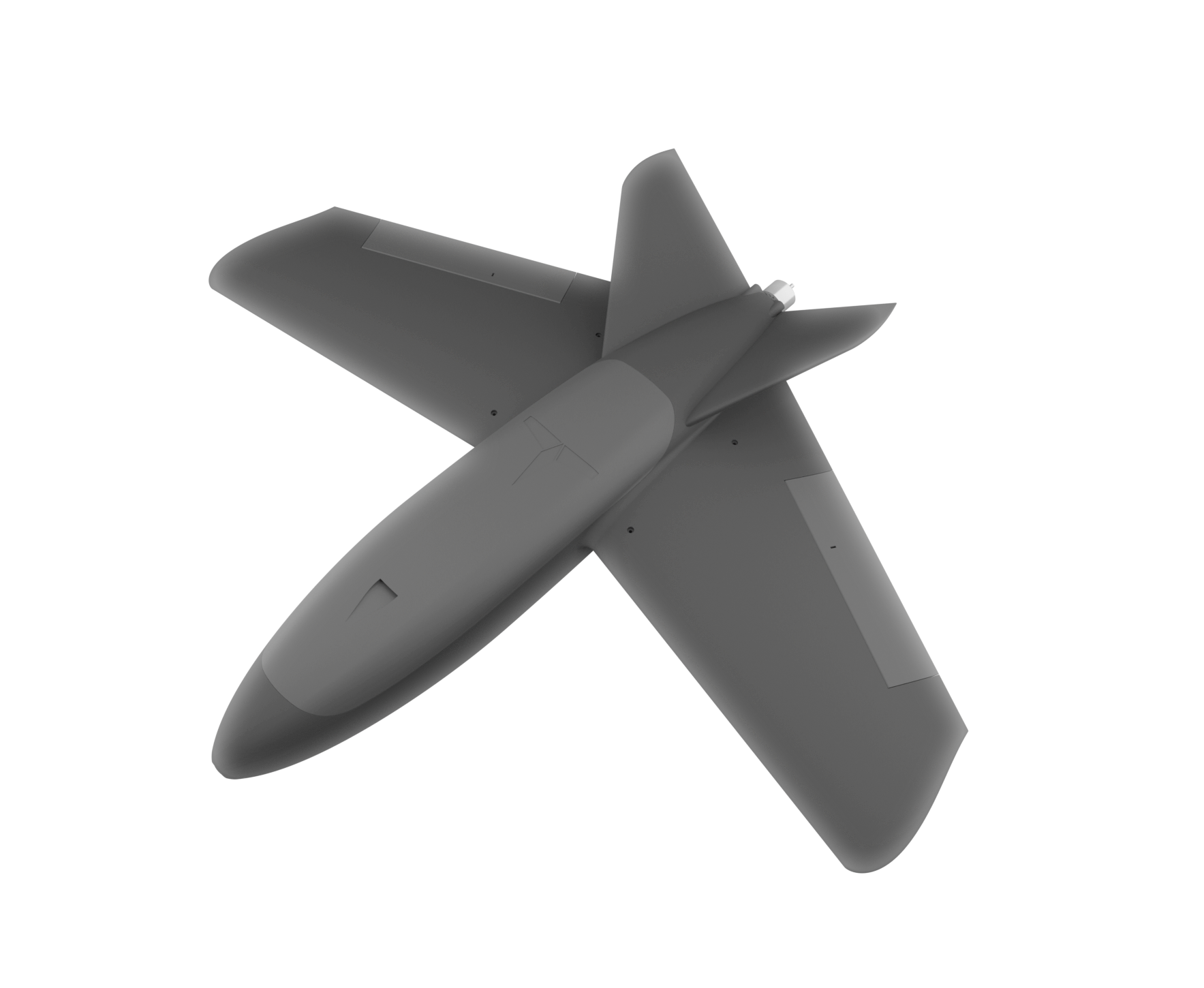

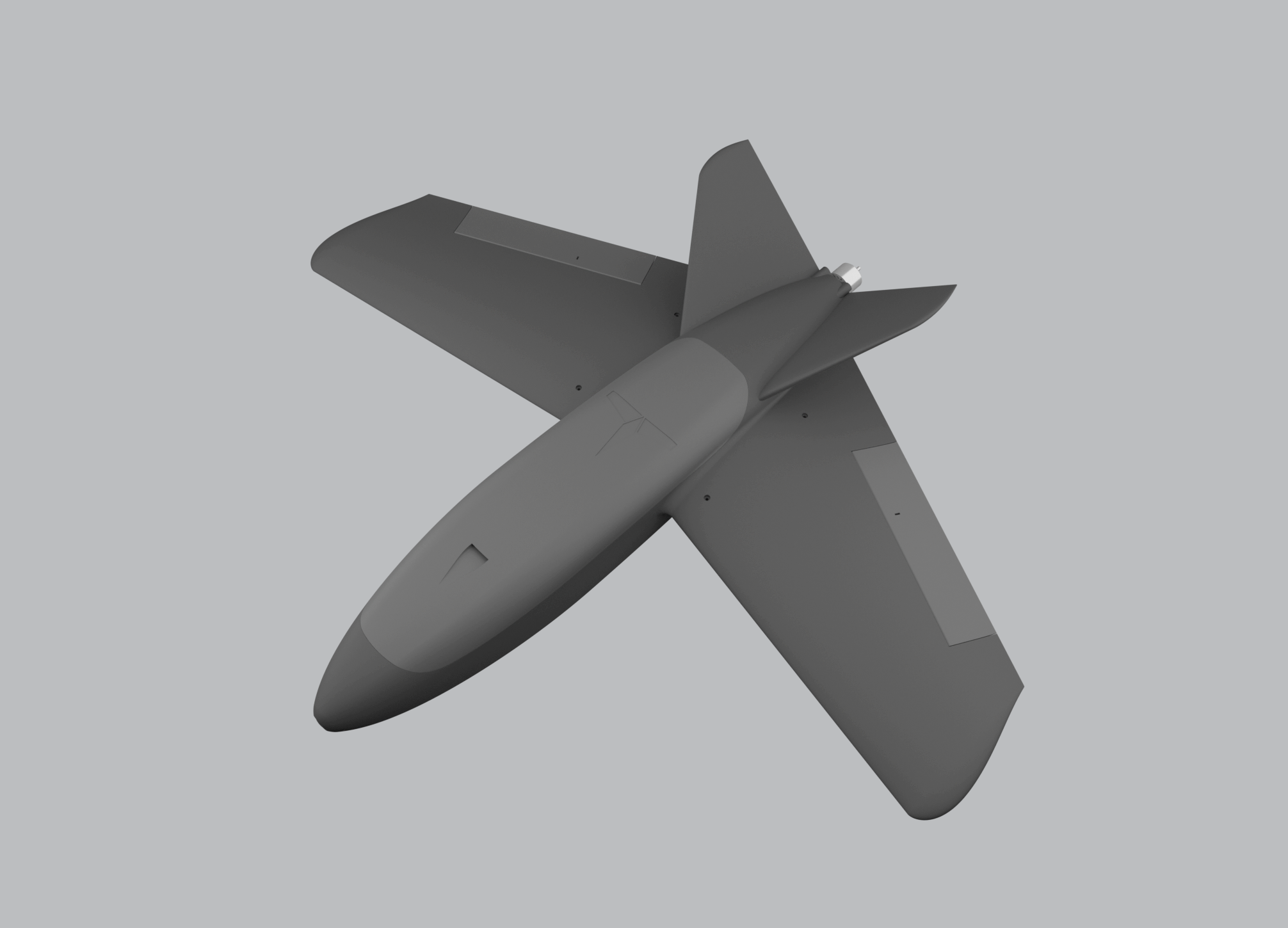

Condor Aerial Titan UAS

Titan

Explore the Titan unmanned aircraft system (UAS), available in two models:

  • Titan LM1 Exclusive Long-Range ISR

  • Titan LM2 Long-Range ISR & Loitering Munitions

Condor Aerial Titan LM1 Exclusive Long-Range ISR

The foundational model of the Titan LM1 UAS is exclusively an ISR mission platform with loitering capabilities up to 2 hours and 41 minutes. The Titan LM1 comes complete with Herelink hand controllers for each aircraft, daytime and thermal cameras suitable for non-ITAR regulated areas, two battery packs, durable carrying cases, battery changers for extended usage, HDMI video output for high-definition video streams, and extra folding props for enhanced portability and convenience.

Titan LM1

Specifications

  • Flight Time: Up to 2 hours 41 minutes

  • Stall Speed: 20 knots (33 fps)

  • Dash Speed: 100 knots (168 fps)

  • Cruise Speed: 40 knots (67 fps)

  • Range with Herelink: 12 miles (20 km)

  • Range with Kutta and Encrypted Comms: 37 miles (60 km)

  • Total Carry Weight: 2.6 lbs (1.17 kg)

  • Compatible with all Condor accessories for hand controllers, cameras, target tracking, and long-range encrypted comms

Condor Aerial Titan LM2 Long-Range ISR and Loitering Munitions

Titan LM2

The Titan LM2 UAS, designed specifically for loitering munitions, incorporates all the features of the foundational model, but also introduces advanced capabilities and a 25 percent greater wingspan. This munitions model offers an encrypted communication link extending up to 100 km, a specialized Kutta Special Ops hand controller, and the flexibility to operate as a stand-alone controller when docked with an Android device. It further supports OS-independent external control surfaces for various systems, including Linux and MS Windows. The system seamlessly integrates with mesh networks and commercially-available IP-based radios, enhancing its adaptability and connectivity.

*Note: Requires ATAK-enabled or a standard Android device.

Specifications

  • Flight Time with Munitions: 46 minutes

  • Stall Speed: 28 knots (47 fps)

  • Dash Speed: 90 knots (151 fps)

  • Cruise Speed: 40 knots (67 fps)

  • Range with Herelink: 12 miles (20 km)

  • Range with Kutta and Encrypted Comms: 37 miles (60 km)

  • Range with Base Station Control: Up to 186 miles (300 km)

  • Total Carry Weight: 4.6 lbs (2.08 kg)

  • Compatible with all Condor accessories for hand controllers, cameras, target tracking, and long-range encrypted comms

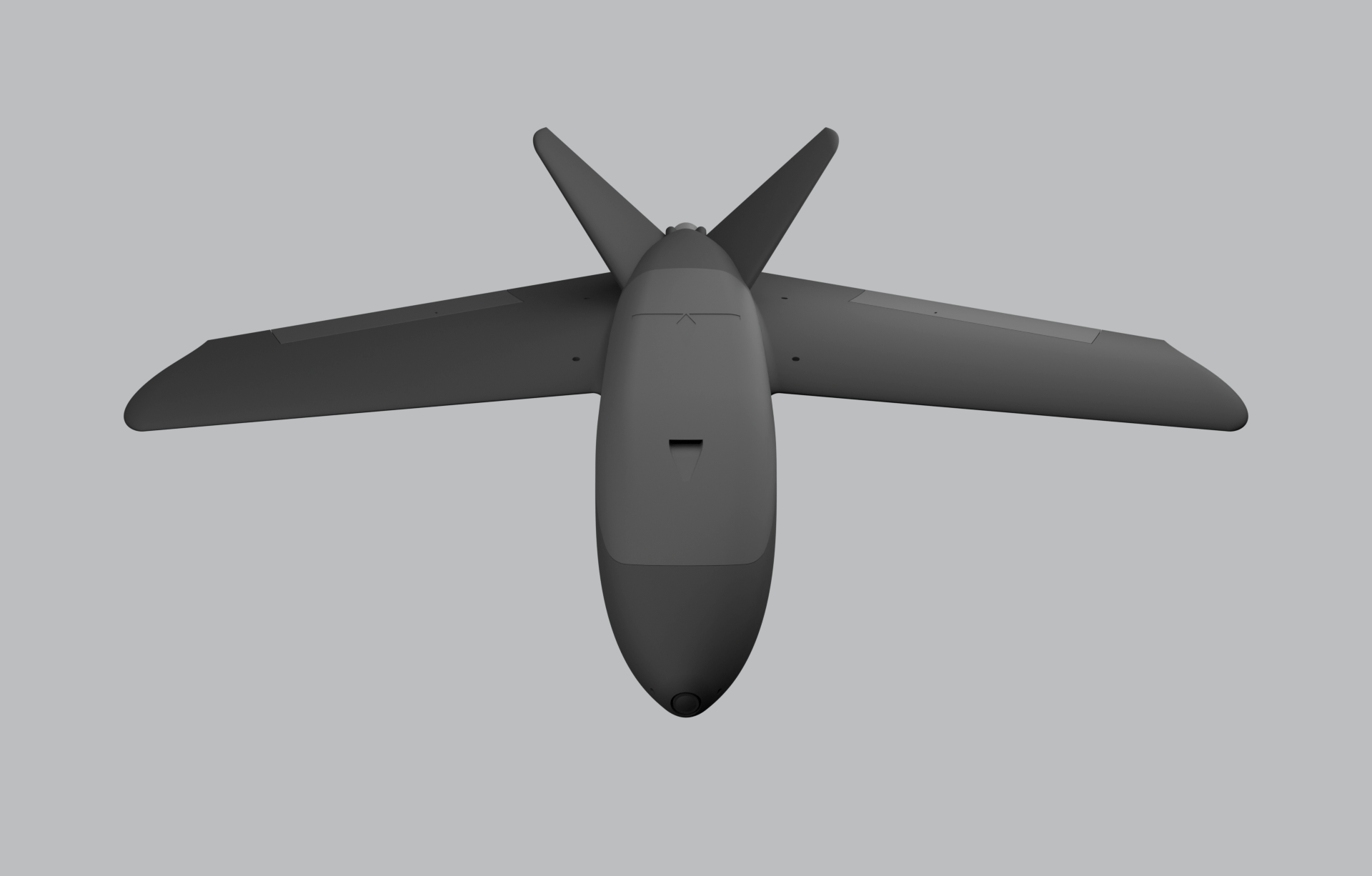

Condor Aerial Titan UAS Top VIew

Applications

  • Intelligence, surveillance, and reconnaissance

  • GPS-denied operations

  • Battle damage assessment

  • Target detection, discrimination, and tracking

  • Maritime operations

Condor Aerial Titan LM2 Loitering Munition

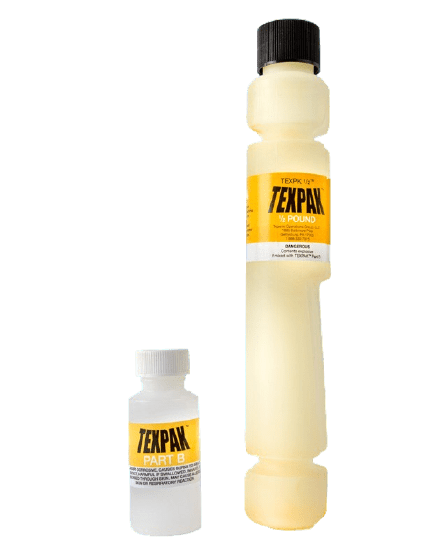

Tripwire TexPak

Titan LM2 Loitering Munition Capabilities

Condor is partnered with Tripwire for their exclusive patented provision of TexPak.

The all liquid binary explosive generates substantial gas volumes and pressures upon activation, boasting an impressive velocity of detonation (VOD) at 21,000 feet per second.

TexPak in untraceable and can be swiftly disposed of leaving no remnants of explosive material behind.

  • Lightweight and lethal payload

  • Capacity: Up to 2 lbs (0.907 kg) total

  • Multiple load capabilities

  • Anti-Personnel: Several hundred projectiles

  • Anti-Armor: Penetrates up to 6 inches of steel

  • Field tested and is combat proven

Regarding Munitions Payload

Please note that Condor is not a distributor or licensed munitions provider of TexPak, or any other accelerants, under US Federal laws.

Condor manufacturers custom UAS systems designed specifically to carry the TexPak Munition.

All purchases and shipping of TexPak and its custom munition carrier for the Condor platforms are exclusively provided by Tripwire, a licensed munition provider.

For additional information on Tripwire for applications, please visit www.tripwiresouth.com/texpak.
